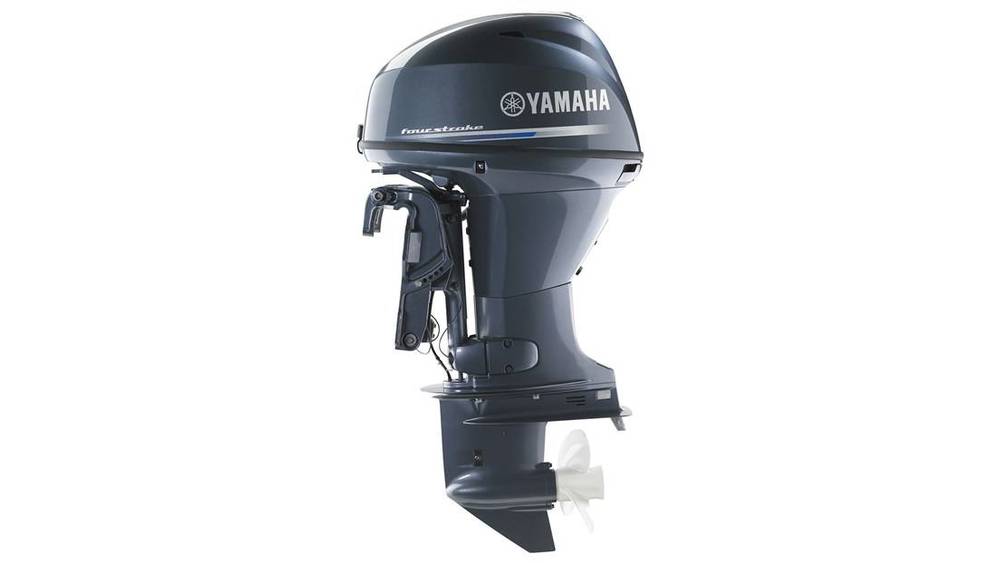

2022 Yamaha F40LA

ENGINE
Engine Type: Four stroke, In-Line 3-Cylinder
Displacement: 747 cc (45.6 ci)
Bore & Stroke: 65 x 75 mm (2.56 x 2.95 in.)
RPM Range: 5000-6000
Compression Ratio: 9.4:1
Induction System: SOHC / 6 – valve
Alternator Output: 16 Amps
Fuel Delivery: Multi-point electronic fuel injection
Starting: Electric
Ignition: TCI Microcomputer
Lubrication: Wet sump
Degree of Trim/Tilt: -3 deg. through +20 deg./63 deg. w/PTT (62 deg. w/hydro-assist manual tilt)
Exhaust: Through Propeller. Water-cooled, Labyrinth
Cooling: Raw water, Thermostatic Control
Gear Shift: F/N/R
Gear Ratio: 26/13 (2:1)

FUEL & LUBRICATION
Recommended Fuel: Unleaded Gasoline (Minimum Pump Octane 87)
Recommended Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
Oil Capacity: 2 L (2.1 qt)

DIMENSIONS
Shaft Length: 20 in.
Dry Weight: 214 lb. (97 kg)
